Description

Stainless Steel

Stainless Steel Combustion Nozzle

  • Fuse series products have a compact design, easy assembly and smooth body structure.
  • SS code are stainless steel nozzles.

Properties

  • Capacity range of 12-250 kW
  • Gas fired combustion
  • Ability to operate with ambient air or preheated air
  • Excess air capacity
  • Square and circular section refractory nozzle options for fiber and concrete walls
  • Direct ignition
  • Photocell and ionization options as flame detectors
  • Elegant and functional design

Advantages

  • Economical fuel consumption
  • Short cycle times
  • Homogeneous heat distribution in the furnace
  • Excellent flame stabilization
  • High modulation
  • Option to operate as a one stage at high capacities
  • Low NOx and CO emission values

Areas of Use

  • Forging processes
  • Reheat processes
  • Pot heating processes
  • Casting vessel heating processes
  • Scrap preheating processes
  • Stress relief processes
  • Aluminum melting processes
  • Thermal fluid heaters
  • Thermal oxidizers
  • Refractory drying units
  • Glass tank heating systems
  • Fiber blanket processing furnaces are used in all other heat treatments and processes that require high temperature and flame stability, tunnel or car furnaces, stretching furnaces, ceramic furnaces, fiber insulated furnaces, etc. used in industrial processes.

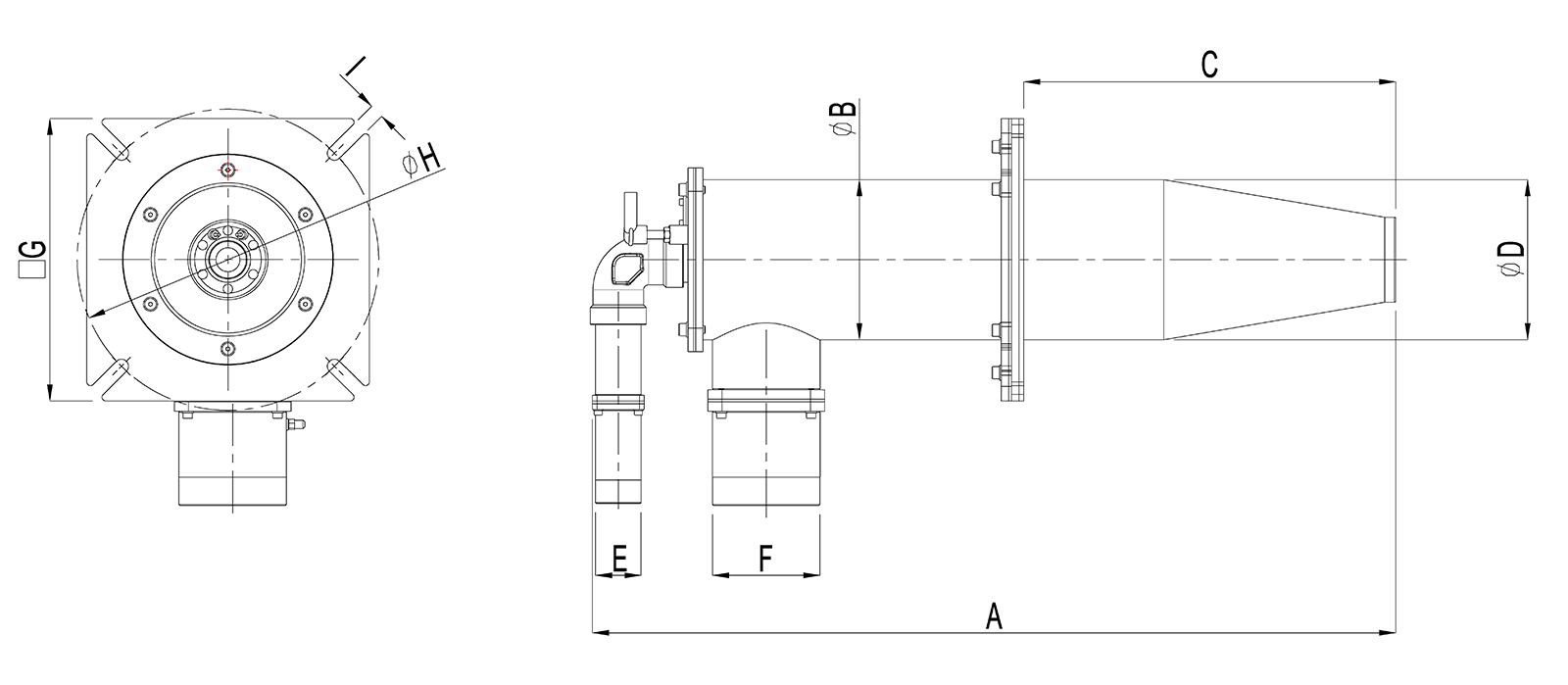

FUSE SS HI – HIGH SPEED BOILER

HIGH SPEED FUSE SERIES
BURNER PRODUCT FAMILY
BODY
TYPE		 SS SERİSİ BURNER CAPACITY BURNER CAPACITY NATURAL GAS CONSUMPTIONİ INCOME
Stainless Steel
Yanma Başlıklı		 MINIMUM
(kW)		 MAXIMUM
(kW)		 MINIMUM
(kcal/h)		 MAXIMUM
(kcal/h)		 MINIMUM
(Nm3/h)		 MAXIMUM
(Nm3/h)		 VAC
FUSE-1 FUSE-SS0012-HI 5 12 4300 10320 0,52 1,25 1N 230/3N 400
FUSE-SS0020-HI 8 20 6880 17200 0,83 2,08 1N 230/3N 400
FUSE-SS0030-HI 12 30 10320 25800 1,25 3,13 1N 230/3N 400
FUSE-SS0050-HI 20 50 17200 43000 2,08 5,21 1N 230/3N 400
FUSE-2 FUSE-SS0150-HI 60 150 51600 129000 6,25 15,64 1N 230/3N 400
FUSE-SS0200-HI 80 200 6880 172000 8,34 20,85 1N 230/3N 400
BODY
TYPE		 SS SERIES A ØB C ØD E F □G ØH I
Stainless Steel
Combustion Head
FUSE-1 FUSE-SS0012-HI 630 Ø98 335 Ø98 DN15 DN40 □200 Ø200 15
FUSE-SS0020-HI 630 Ø98 335 Ø98 DN15 DN40 □200 Ø200 15
FUSE-SS0030-HI 630 Ø98 335 Ø98 DN15 DN40 □200 Ø200 15
FUSE-SS0050-HI 630 Ø98 335 Ø98 DN15 DN40 □200 Ø200 15
FUSE-2 FUSE-SS0150-HI 680 Ø110 335 Ø110 DN25 DN50 □230 Ø230 15
FUSE-SS0200-HI 680 Ø110 335 Ø110 DN25 DN50 □230 Ø230 15

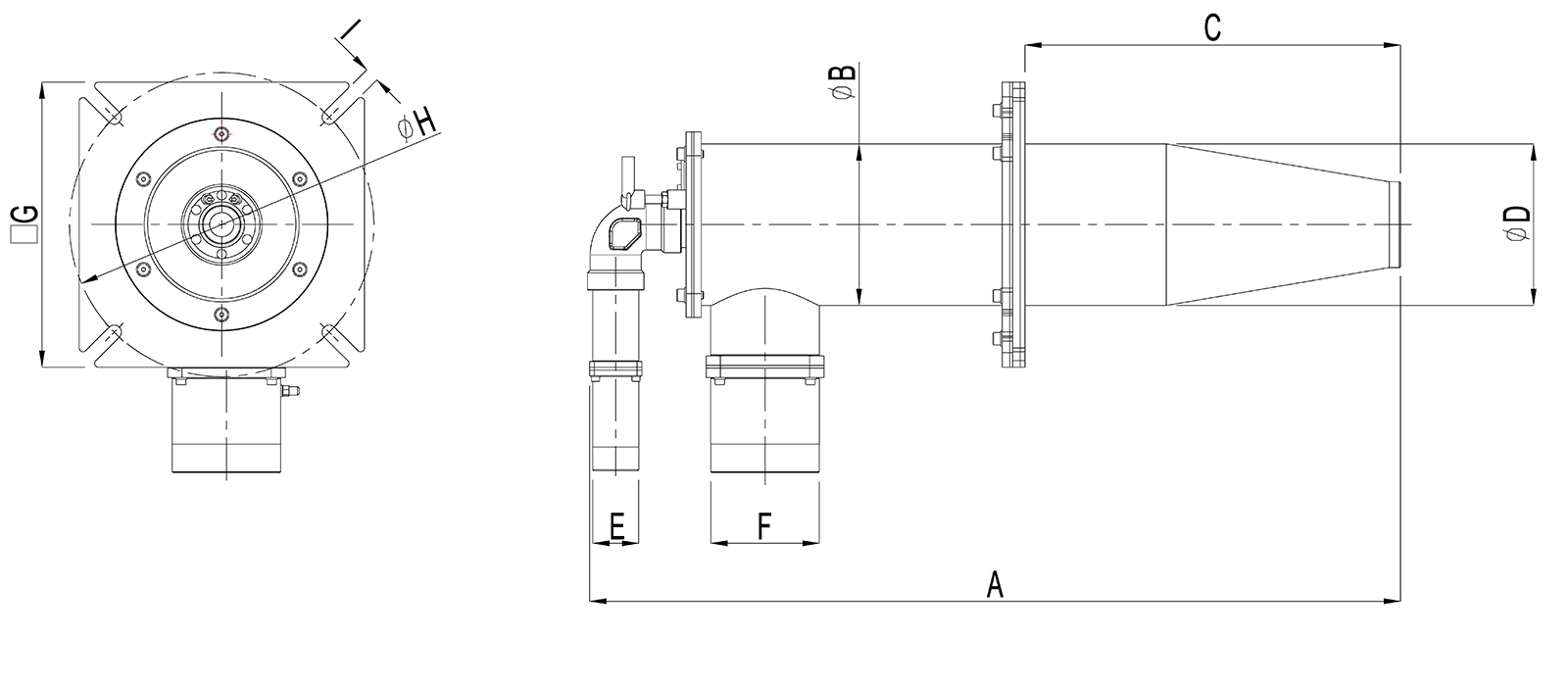

FUSE SS UL – ULTRA HIGH SPEED BOILER

ULTRA HIGH SPEED FUSE SERIES
BURNER PRODUCT FAMILY
BODY
TYPE		 SS SERİSİ BURNER CAPACITY BURNER CAPACITY NATURAL GAS CONSUMPTIONİ INCOME
Stainless Steel
Yanma Başlıklı		 MINIMUM
(kW)		 MAXIMUM
(kW)		 MINIMUM
(kcal/h)		 MAXIMUM
(kcal/h)		 MINIMUM
(Nm3/h)		 MAXIMUM
(Nm3/h)		 VAC
FUSE-1 FUSE-SS0012-UL 5 12 4300 10320 0,52 1,25 1N 230/3N 400
FUSE-SS0020-UL 8 20 6880 17200 0,83 2,08 1N 230/3N 400
FUSE-SS0030-UL 12 30 10320 25800 1,25 3,13 1N 230/3N 400
FUSE-SS0050-UL 20 50 17200 43000 2,08 5,21 1N 230/3N 400
FUSE-SS0100-UL 40 100 34400 86000 4,17 10,42 1N 230/3N 400
FUSE-2 FUSE-SS0150-UL 60 150 51600 129000 6,25 15,64 1N 230/3N 400
FUSE-SS0200-UL 80 200 6880 172000 8,34 20,85 1N 230/3N 400
FUSE-SS0250-UL 100 250 86000 215000 10,42 26,06 1N 230/3N 400



BODY
TYPE		 SS SERIES A ØB C ØD E F □G ØH I
Stainless Steel
Combustion Head
FUSE-1 FUSE-SS0012-UL 630 Ø98 335 Ø98 DN15 DN40 □200 Ø200 15
FUSE-SS0020-UL 630 Ø98 335 Ø98 DN15 DN40 □200 Ø200 15
FUSE-SS0030-UL 630 Ø98 335 Ø98 DN15 DN40 □200 Ø200 15
FUSE-SS0050-UL 630 Ø98 335 Ø98 DN15 DN40 □200 Ø200 15
FUSE-SS0100-UL 630 Ø98 335 Ø98 DN15 DN40 □200 Ø200 15
FUSE-2 FUSE-SS0150-UL 680 Ø110 335 Ø110 DN25 DN50 □230 Ø230 15
FUSE-SS0200-UL 680 Ø110 335 Ø110 DN25 DN50 □230 Ø230 15
FUSE-SS0250-UL 680 Ø110 335 Ø110 DN25 DN50 □230 Ø230 15
